When the nozzle is blocked or the print quality is poor, replacing the nozzle is necessary. This guide illustrates how to replace the nozzle. The steps are simple and help reduce maintenance costs.
 |
 |
 |

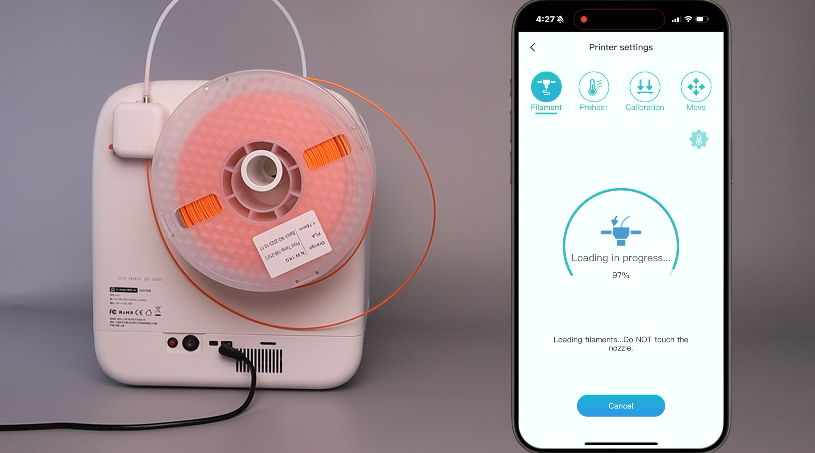

| 1. Start by unloading filament. Turn on the X-MAKER JOY and connect it to your phone app. | 2. After unloading is complete, turn off the printer and wait for the nozzle to cool down. | 3. Open the printer’s door, and you can see an orange button on the right of the print head. |
 |
 |
 |
| 4. While pressing the orange button all the way down, pull out the nozzle. | 5. Take a new nozzle, and turn the side of the white connector to the right. | 6. Insert the nozzle into the hole. |
 |
 |
|
| 7. Press the nozzle firmly until you hear a "click" sound. | 8. Nozzle replacement is complete. |
If there are any other questions, please contact us directly through service@aoseed.com.
